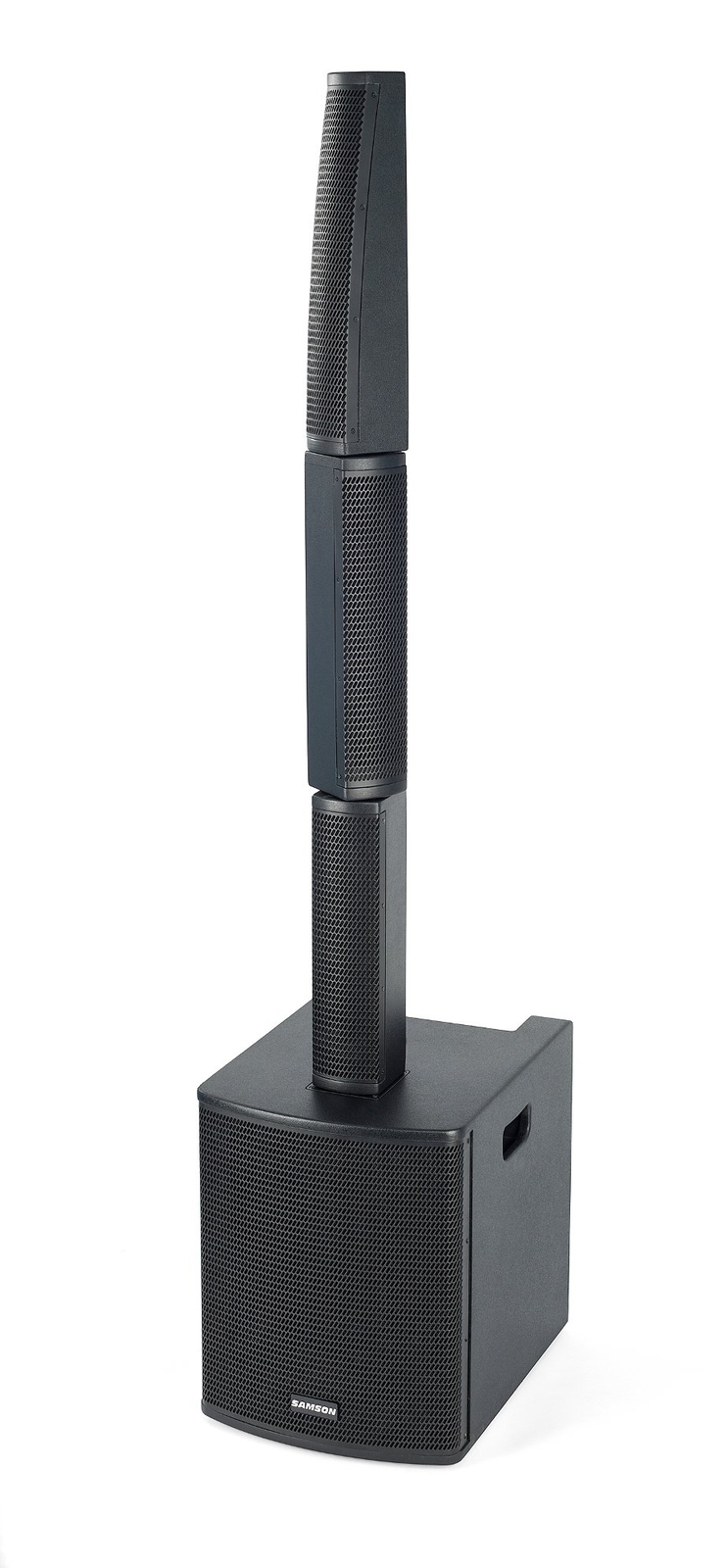

Samson RESOUND-VX8.1 12 Portable Column Array System, 700W

Constructed of solid plywood with textured paint and steel grilles, the Resound VX8.1 from Samson is a 12" portable column array system that delivers premium sound in a sleek, easy-to-transport package. Ideal for mobile DJs, bands, singer-songwriters and other performers that require high-quality sound reinforcement, the active 700-watt system includes a 12" subwoofer with a 3-channel mixer and eight 3.5" drivers.

Arranged in a vertical column array that provides 120°–200° of horizontal coverage this portable column array system features onboard 4-presets (Music, Live, Speech, DJ) and DSP processing, the VX8.1 has what it takes to fill large rooms with stunning sound. Its 3-channel mixer includes connections for microphones, instruments and line devices. Also, backing tracks or music playback can be conveniently streamed via Bluetooth® from any mobile device.

Eight 3.5" drivers are arranged in an interlocking, 2-segment column array, coupled (via an extension segment) with a 12" subwoofer that can produce up to 130dB SPL. To ensure sound is delivered across an entire audience, the VX8.1 provides a horizontal coverage angle of 120° with the full array in center position, as well as 200° with the two array segments rotated 45° in opposite directions. Meanwhile, the system's subwoofer delivers tight low end down to 40Hz.

The VX8.1 is durable to handle from gig to gig and the system's interlocking components make setup a breeze, with no need for cables or stands. Plus, a Thru output enables the ability to integrate a second VX8.1 system and further expand your sound.

• Live Performance
• Music Education
• Fitness
• DJ
• House of Worship
• Karaoke

• Full system frequency response of 40 Hz–20 kHz (-3 dB)
• Horizontal coverage of 120° (full center) to 200° (45° L/R array rotation)
• Included extension segment connects subwoofer and array column
• Interlocking components for easy setup
• Top-mounted 3-channel mixer (on subwoofer)
• 4-preset DSP processing (Music, Live, Speech, DJ)
• Channel 1: XLR-1/4" combo selectable mic/line input for microphones and line level devices
• Channel 2: XLR-1/4" combo line/instrument input for line level devices and instruments + stereo RCA input
• Channel 3: Bluetooth connectivity to connect wireless music sources
• Independent volume controls on each channel
• Column Select (Center/Rotate) EQ switch
• Thru (Mix/Channel 1 selectable) output to daisy-chain multiple systems together

• Amplifier: Class D
• System Output Power: 700 watts (350 W Sub / 350 W Array)
• System Frequency Response: 40 Hz–20 kHz (-3 dB)
• System Max. SPL: 130 dB
• Subwoofer: 12" active
• Satellite Speakers: 8x 3.5" passive (in 2-segment column)
• Horizontal Coverage: 120° (center), 200° (45° L/R rotation)
• Inputs: XLR-1/4" combo Mic/Line, XLR-1/4" combo Line/Instrument, RCA
• Outputs: XLR Thru (Mix/Channel 1)
• Level Controls: Channels 1–2, Bluetooth
• DSP: 4 presets (Music, Live, Speech, DJ)
• EQ: Column Select (Center/Rotate) switch
• Dynamics Control: Reverb, Voiceover (switch)
• Bluetooth: Bluetooth 4.0, A2DP
• Construction: Plywood, textured paint, steel grille, integrated handles, interlocking design
• Additional: Extension segment
• Product Dimensions (assembled): 72.5" (1842 mm) x 14.9" (379 mm) x 18.6" (472 mm)
• Product Weight: 67 lbs (30.4k g)
